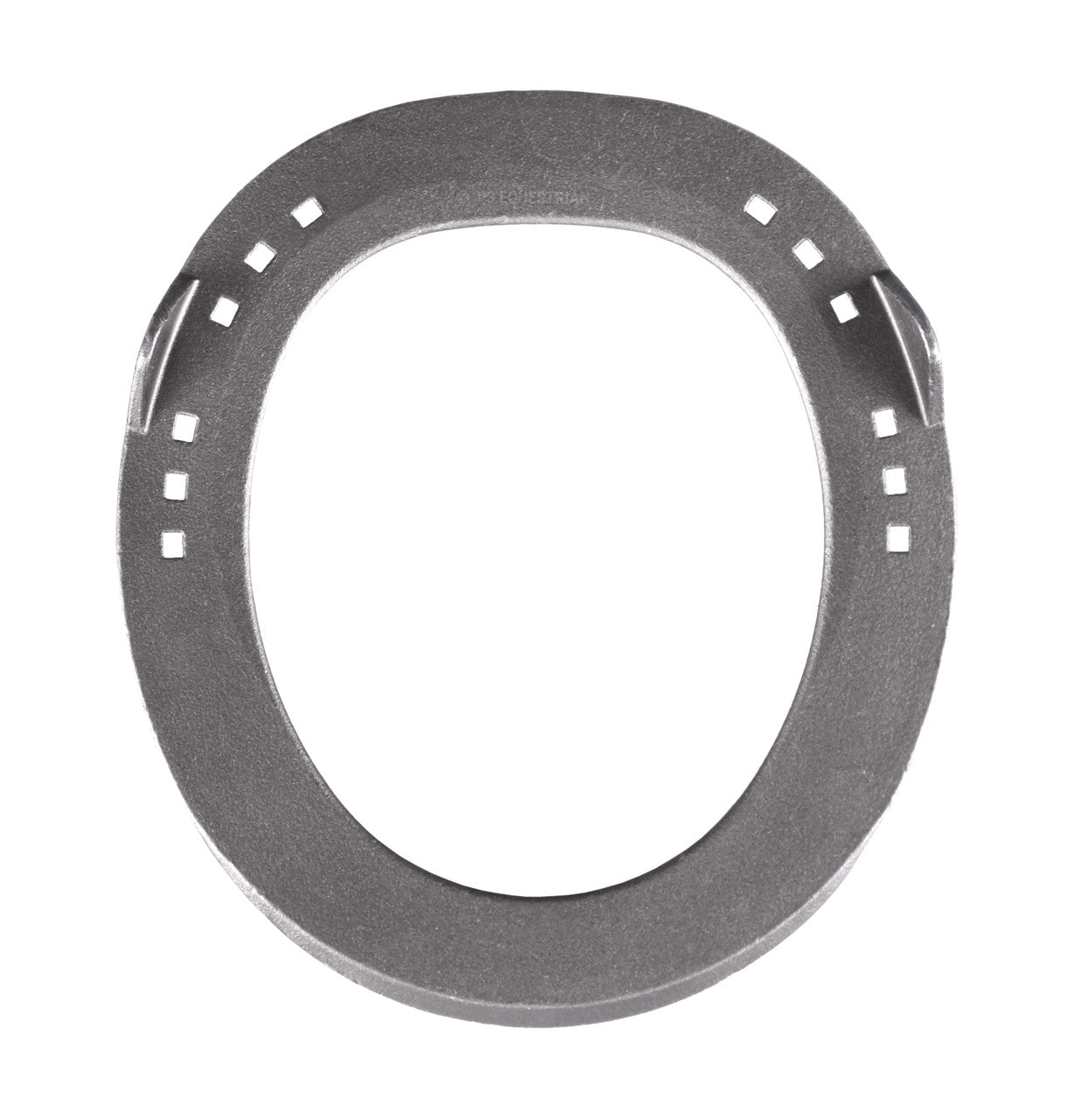

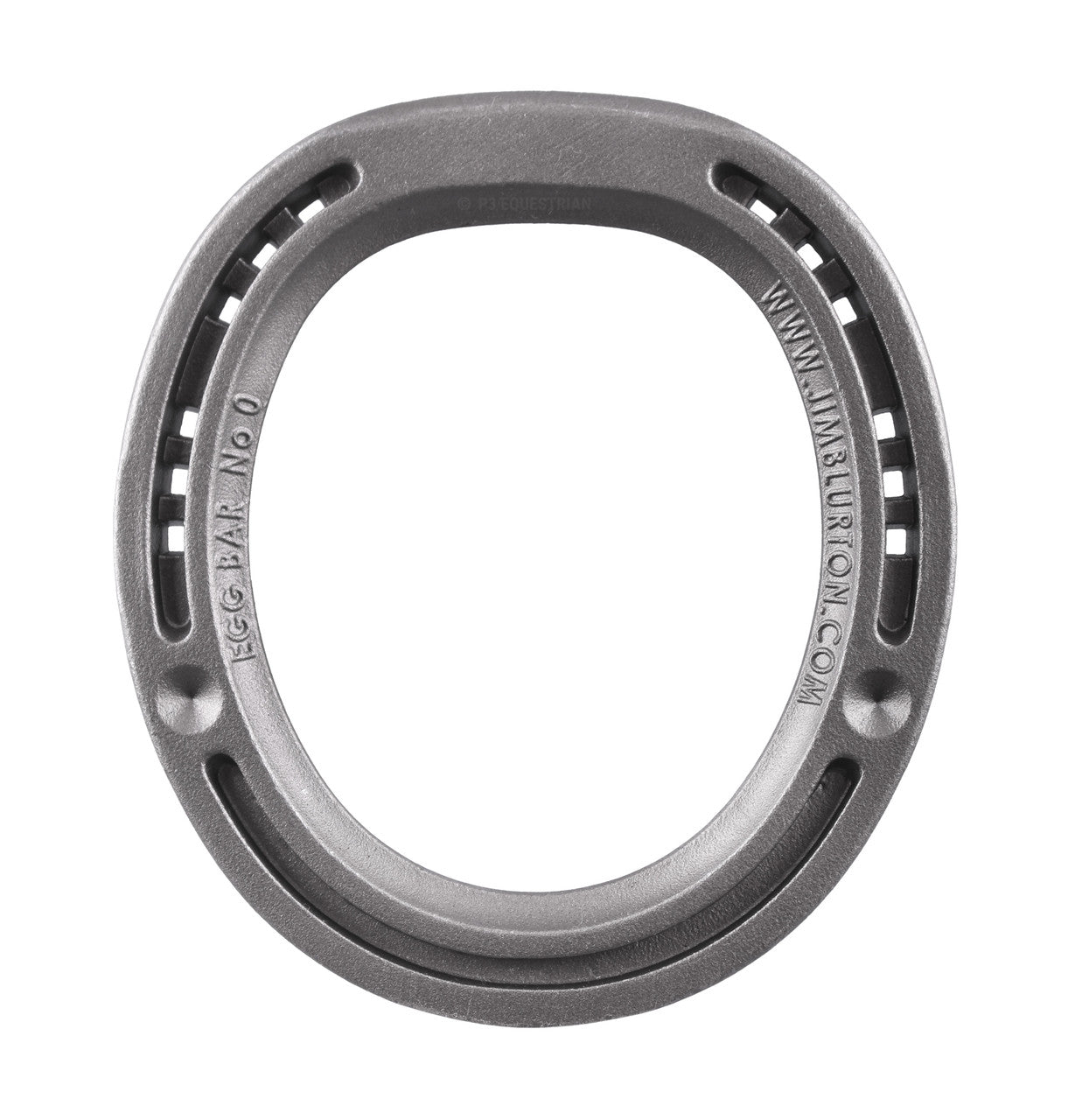

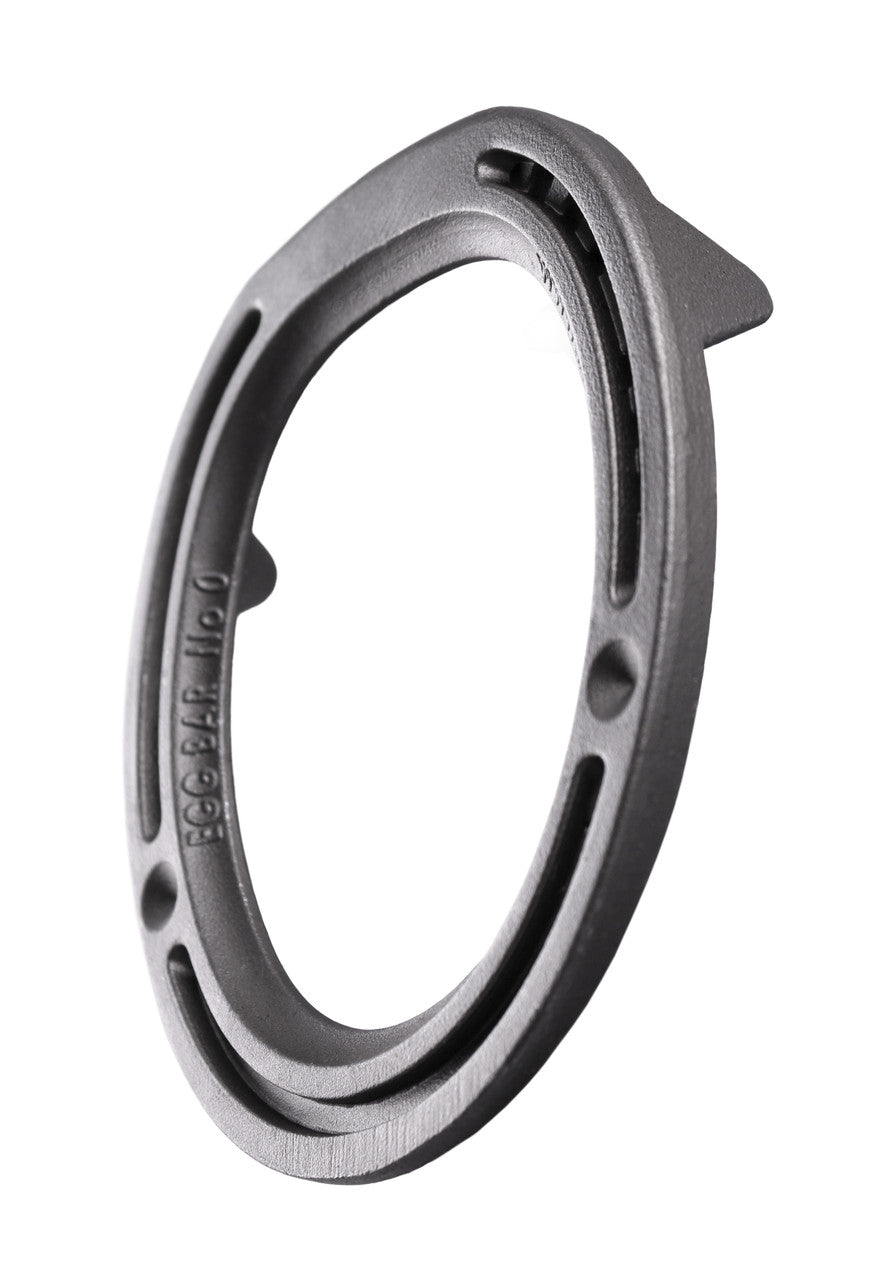

Jim Blurton Egg Bar

Regular price $41.90

This is an oval shaped shoe and is usually used on horses with pre-navicular and navicular disease. The frog is not supported, as the bar extends behind it, which can be a problem when used with very flat feet, as the frog will “drop through” because it is unsupported. In this case, a heart-bar shoe may be better.

The Jim Blurton Egg Bar Horseshoe has a considerably enlarged heel-bearing surface and is usually applied to the front feet with a rolled toe. Recently, egg-bar shoes have been fitted to hind feet, as the extended heel surface gives support to horses with hock problems.

The shoe incorporates a roll toe and is safed off at the heel. Side clips are standard and they have a countersunk position for stud holes. Unique to these shoes they incorporate pitched nail holes providing a different angle for each nail making it easier to nail on.

Made from steel.

Sold by the pair.



Front shoe size Width (inches)
3x0 4 1/2
2x0 4 3/4
0 5
1 5 1/4
2 5 1/2
3 5 3/4
4 6
5 6 1/4





measuring hoof width diagram
